Drain Sewer Pipe Inspection Camera System with 130ft Cable – Rain-Proof

Drain Sewer Pipe Inspection Camera System with 130ft Cable – Rain-Proof

Sku: 3599FB

Fits 2″ – 6″ Pipe.

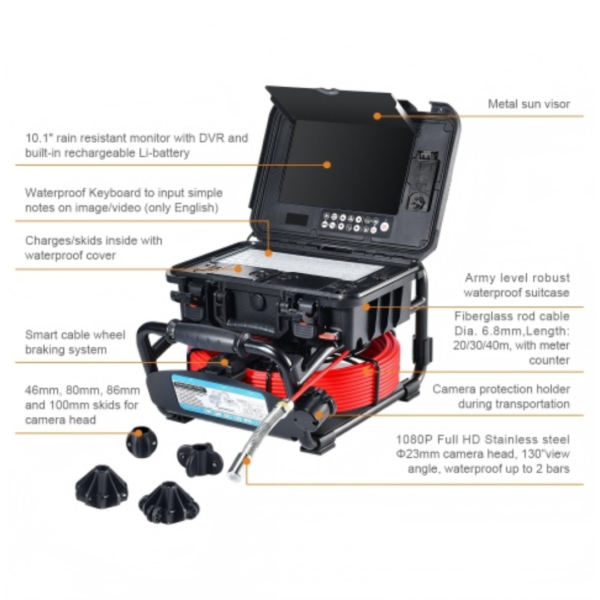

All-in-One Video pipe inspection camera with 30M fiberglass cable and 10.1″ monitor with DVR feature and with built-in 512hz Sonde & built-in self leveling feature.

• Unique, professional and compact design.
• 1/3 inch CMOS, 130° wide vision angle
• 1080P Full HD Stainless steel camera head, IP68 waterproof level
• Sapphire glass lens cover, 15 high light white LEDs
• Diameter of camera: 23 mm

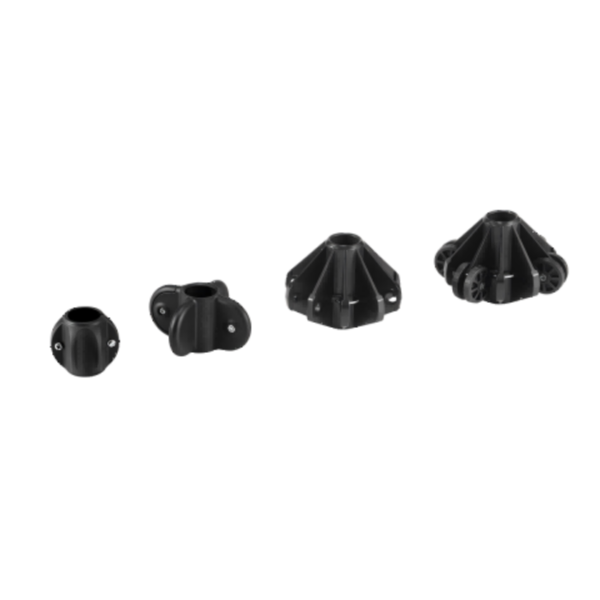

• Four plastic guides for camera head, Φ46mm 80mm 86mm & 100mm

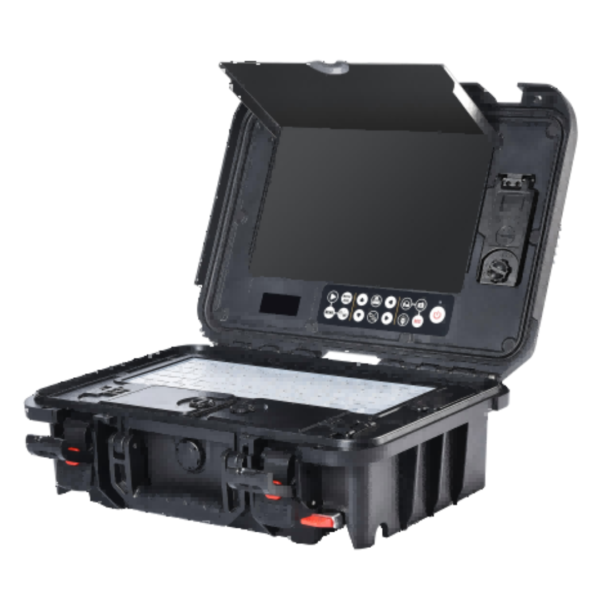

• 10” LCD color monitor, with image rotate button
• SD Card slot to store still pictures or videos
• One push record button
• LED brightness control buttons
• With microphone for local audio recording
• Rechargeable battery lasts up to 6 hours
• On-Screen date and time
• 20, 30 or 40m fiberglass φ6.8mm push rod

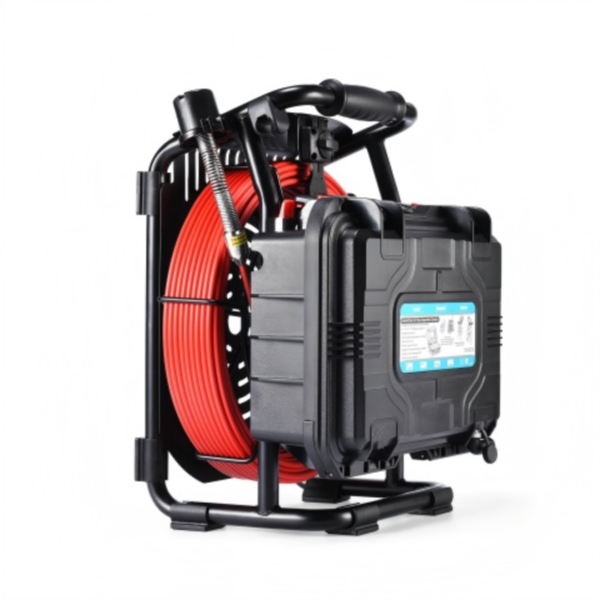

• The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
• Ability to go through 90°bends in Φ45mm pipes
• With smart braking system
• With on-screen distance counter
• With Keyboard for text input (English)

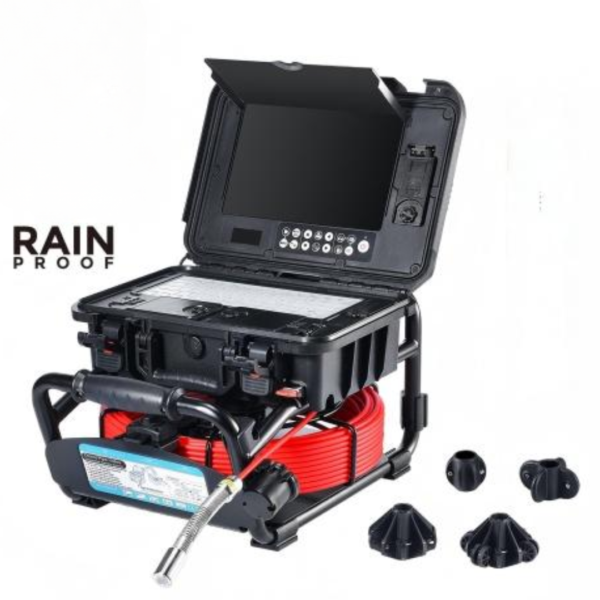

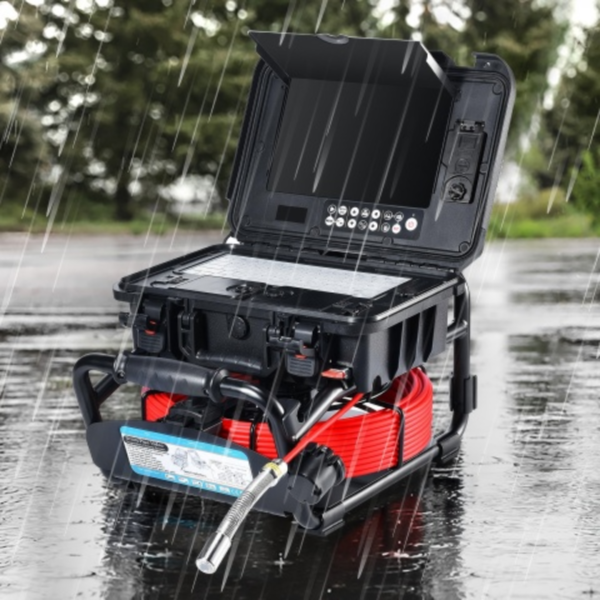

• Whole system waterproof (box closed), whole system rain-proof even when box is open.
• Built-in 512hz sonde
• Self-leveling function
• 33khz transmitter

This is a professional video inspection camera designed for inspection of sewer, pipe, air ducts, undergound cable pipes, etc. Equipped with a Φ23mm 1/3′ CMOS camera head, 20~40m fiberglass rod cable and 10.1 ‘ LCD monitor with SD card recording, it’s a great choice for pipe DN 50mm~140mm.

TB Video Drain Pipe Inspection Inspection Camera Model No.3599FB PDF
